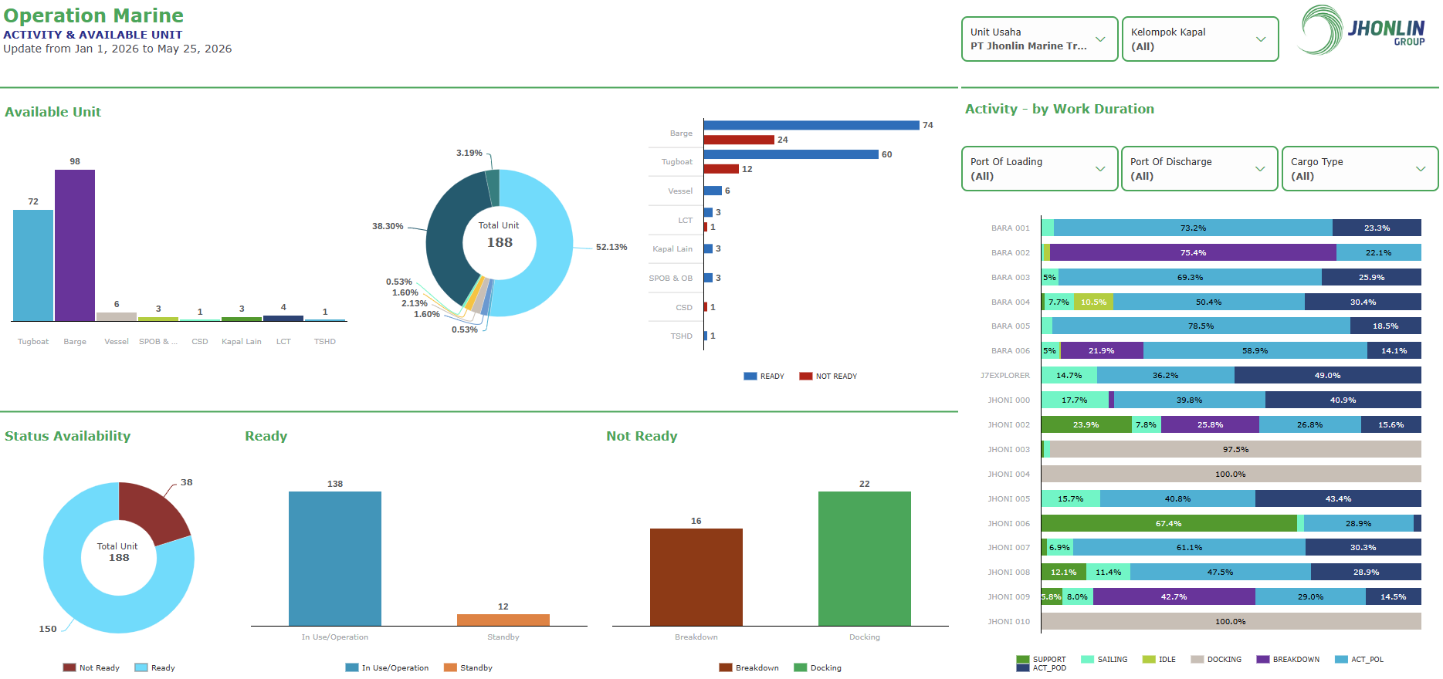

Sheet 1: Activity & Available Unit - Kesiapan Armada & Timesheet
Dokumentasi spesifikasi fungsional dan teknis Sheet 1: Activity & Available Unit pada Story SAP Analytics Cloud (SAC) Operation Marine.
1. Ruang Lingkup Ketersediaan Unit Kapal
Sheet ini menyajikan visibilitas waktu-nyata (real-time fleet readiness) atas status seluruh unit kapal:
- Tugboat & Tongkang (TB/BG)
- Self Propelled Oil Barge (SPOB) & Tanker
- Floating Crane & Mother Vessel
2. Struktur Widget & Metrik Kunci
| Widget / Visualisasi | Model CDS Sumber | Formula / Filter | Fungsi Bisnis |
|---|---|---|---|

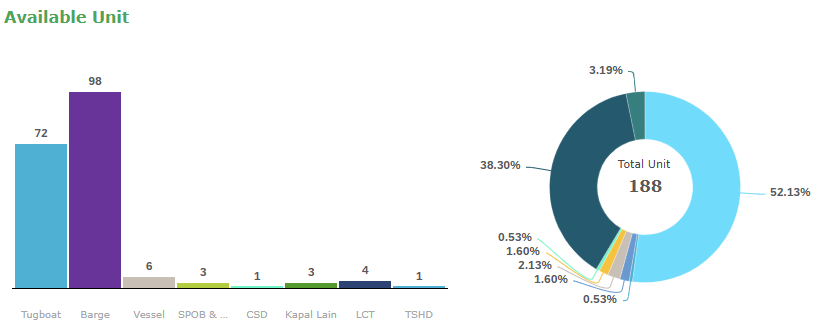

| Total Available Units | JG_M_S4HLV_ZCPPON001 |
Filter: STATUSAVAILABLE = 'AVAILABLE' |
Menghitung jumlah kapal siap beroperasi |
| Total Breakdown Units | JG_M_S4HLV_ZCPPON001 |
Filter: STATUSAVAILABLE = 'BREAKDOWN' |
Menghitung kapal dalam perawatan / perbaikan |
| Fleet Availability by Group | Stacked Column Chart | Dimensi: Equipment Group (TB/BG, SPOB, FC) |
Proporsi ketersediaan per jenis kapal |
| Timesheet Activity Distribution | Pie / Donut Chart | Dimensi: Activity Type |
Pembagian jam kapal: Steaming, Loading, Discharging, Waiting, Delay |
| Voyage Cycle Duration | Bar Chart | Cycle Time = Departure - Arrival |
Rata-rata durasi perjalanan pulang-pergi per rute |
