SAC Operation Marine: Overview & Arsitektur Solusi

Dokumentasi arsitektur sistem, alur data (Data Flow), model analitik, dan spesifikasi fungsional untuk Story SAC Operation Marine yang mencakup kegiatan pelayaran, pengangkutan laut batubara/kargo cair, dan bongkar muat (stevedoring) PT Jhonlin Marine Trans (JT00) dan PT Jhonlin Marine Lines (JL00).

Catatan (Note)> **Karakteristik Koneksi:** Live Connection SAP S/4HANA CDS Views menuju SAP Analytics Cloud (SAC) tenant Jhonlin Group (`6c653`), menyajikan metrik posisi kapal, status perjalanan (*trip/voyage*), konsumsi bunker fuel, dan pendapatan/biaya kapal secara *real-time*.

1. Ruang Lingkup Operasional Armada Laut

Solusi Operation Marine mengintegrasikan data operasional armada kapal dan komersial pelayaran:

Klasifikasi Armada Kapal (Fleet Classification):
- Tugboat & Tongkang (TB/BG): Pengangkutan batubara domestik dan transhipment muat ke kapal besar.
- Mother Vessel (Bulk Carrier): Pengangkutan batubara antar pulau dan ekspor.
- Tanker & SPOB (Self Propelled Oil Barge): Pengangkutan bahan bakar cair (Fuel HSD) dan CPO.
- Floating Crane (FC): Unit bongkar muat batubara di laut lepas (Stevedoring / Transhipment).
Entitas Operasional:
- JT00 – PT Jhonlin Marine Trans: Operasional pelayaran dan transportasi angkutan laut.
- JL00 – PT Jhonlin Marine Lines: Layanan jasa logistik maritim dan stevedoring kapal.

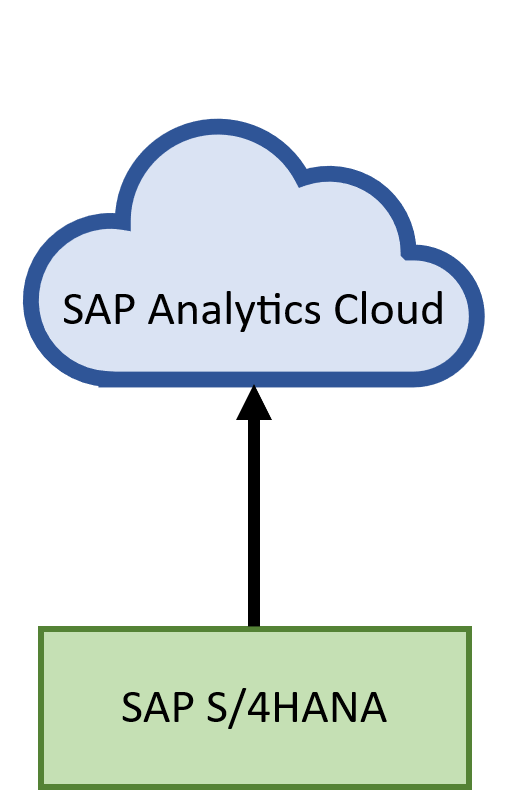

Arsitektur Data Flow S/4HANA ke SAC Operation Marine — FSD Reference

2. Arsitektur Data Flow S/4HANA ke SAC

TEXT

[ SAP S/4HANA Marine System ]
  ├── Master Data Kapal & Status Unit (EQUI, IFLOT)  ──> CDS: ZCPPON001
  ├── Marine Timesheet, Trip & Fuel (AUFK, MSEG)     ──> CDS: ZCPPON002 / ZCPPON003
  ├── Sales Order & Freight Revenue (VBAK, VBAP)     ──> CDS: ZCPPON006 / ZBSDXX001
  └── Financial Ledger ACDOCA (Bunker, Port, Assist) ──> CDS: ZCFIGL001
                                                                 │
                                                    Live Connection (CORS / Cloud Connector)
                                                                 │
                                                                 ▼
                                                  [ SAP Analytics Cloud Model ]
                                                    ├── JG_M_S4HLV_ZCPPON001 (Available Unit)
                                                    ├── JG_M_S4HLV_ZCPPON006 (Sales & Stevedoring)
                                                    └── Financial Performance for Operation Marine
                                                                 │
                                                                 ▼
                                                  [ SAC Story: Operation Marine ]
                                                    ├── Sheet 1: Activity & Available Unit
                                                    ├── Sheet 2: Cost & Sales Period
                                                    ├── Sheet 3: Cost & Sales Date
                                                    └── Sheet 4: Stevedoring Activity (JML)

3. Daftar Sheet Story Operation Marine

No	Nama Sheet	Kode Teknis	Fokus Analisis
1	Activity & Available Unit	`Activity & Avail. Unit`	Populasi Kapal, Status Operasi, Standby, Breakdown, Timesheet
2	Cost & Sales Period	`Cost & Sales Period`	Pendapatan Freight, Biaya Bunker/Clearance, Margin Bulanan
3	Cost & Sales Date	`Cost & Sales Date`	Analisis Harian Biaya Operasi vs Pendapatan per Tanggal
4	Stevedoring Activity (JML)	`Stevedoring Act.`	Kinerja Floating Crane, Bongkar Muat Mother Vessel, Throughput
