Sheet 2: Equipment Status & Availability (JB) - Fleet Readiness
Dokumentasi spesifikasi fungsional dan teknis Sheet 2: Equipment Status & Availability pada Story SAP Analytics Cloud (SAC) Operation Mining PT Jhonlin Baratama (JB00).
1. Ruang Lingkup Kesiapan Armada (Fleet Readiness)
Halaman ini memantau status operasional harian seluruh populasi alat berat tambang (Heavy Mobile Equipment / HME):
- Excavator Besar (Class 100T, 200T, 400T): PC1250, PC2000, EX2600.
- Dump Truck Tambang (Off-Highway Trucks / OHT): HD785, CAT 777.
- Support Fleet: Dozer (D155, D375), Motor Grader (GD825), Water Truck, Fuel Truck.
2. Metrik Standar Ketersediaan Alat (Availability Metrics)
| Singkatan | Indikator Kinerja | Standar Target | Formula Perhitungan |
|---|---|---|---|
| PA | Physical Availability | $ge 85%$ | $ rac{WOH + SBH}{TOH} imes 100%$ |
| MA | Mechanical Availability | $ge 90%$ | $ rac{WOH}{WOH + BDH} imes 100%$ |
| UA | Utilization of Availability | $ge 75%$ | $ rac{WOH}{WOH + SBH} imes 100%$ |
Keterangan Variabel:
- WOH (Working Operating Hours): Jam unit beroperasi menghasilkan produksi.
- SBH (Standby Hours): Jam unit siap operasi namun tidak bekerja (hujan, licin, shift change).
- BDH (Breakdown Hours): Jam unit mengalami kerusakan / perbaikan bengkel (unscheduled + scheduled).
- TOH (Total Available Operating Hours): Total jam kalender tersedia (24 jam/hari $ imes$ jumlah hari).

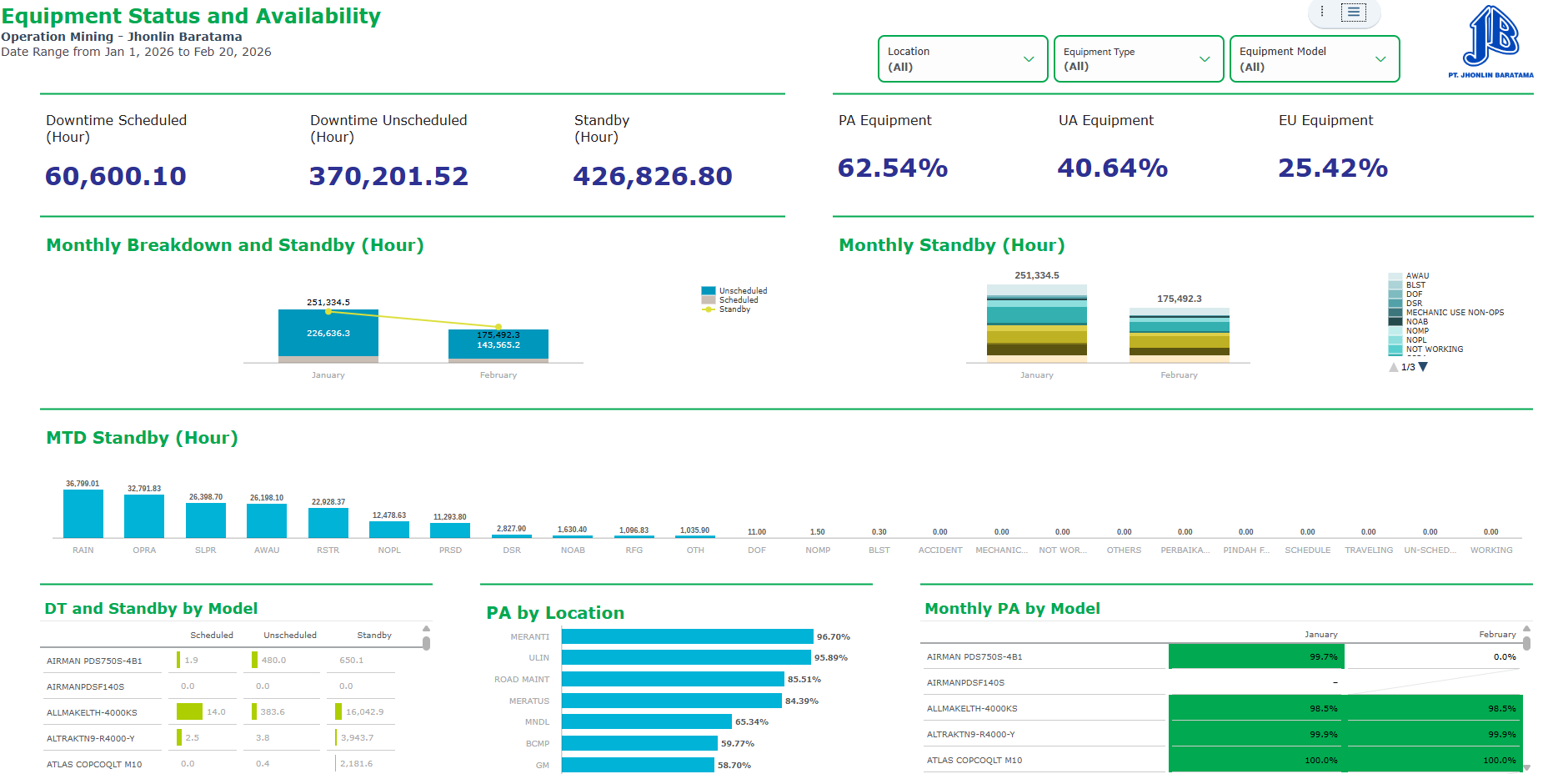

3. Komponen Visualisasi
- Populasi Armada Total:
- Kartu angka besar (Big Number) menampilkan total unit aktif, unit standby, dan unit breakdown.

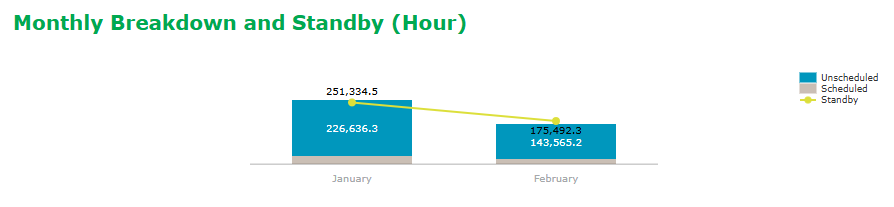

- Breakdown Status by Equipment Type:
- Stacked column chart menampilkan proporsi unit yang sedang beroperasi (Operating), standby (Standby), dan perbaikan (Repair/Breakdown).
- Analisa Penyebab Kerusakan (Top Breakdown Reasons):
- Pareto chart menampilkan komponen frekuensi kerusakan tertinggi (Engine, Hydraulic System, Undercarriage, Transmission, Electrical).
- Model CDS Sumber:
JG_M_S4HLV_ZCPPON001(CDS View:ZCPPON001, Query:ZVCPPON001).
